Electric Switchgear Factory

• Power Control Centers (PCC)
• Sub Main LV Switchboards
• Motor Control Centre (Fixed Design)
• Intelligent Motor Control Centers (IMCC)
• Motor Control Centers (Draw out design)
• Automatic Transfer Switch (ATS)
• Synchronizing Panels
• Metering Panels
• Feeder Pillars
• Lighting Control Panels
• Distribution Boards
• AC/DC Control Panels
• PLC Based Plant Automation
• Data Acquisition & SCADA
  • Suitable for all Power Distribution applications up to
  • 6300A/ 690V/ 60 HzAutomatic
  •  Power Factor Correction Panels (APFCP)

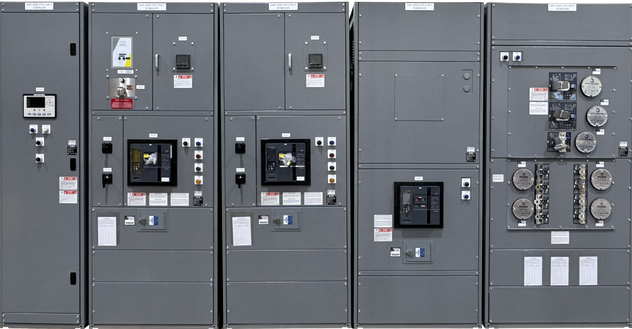

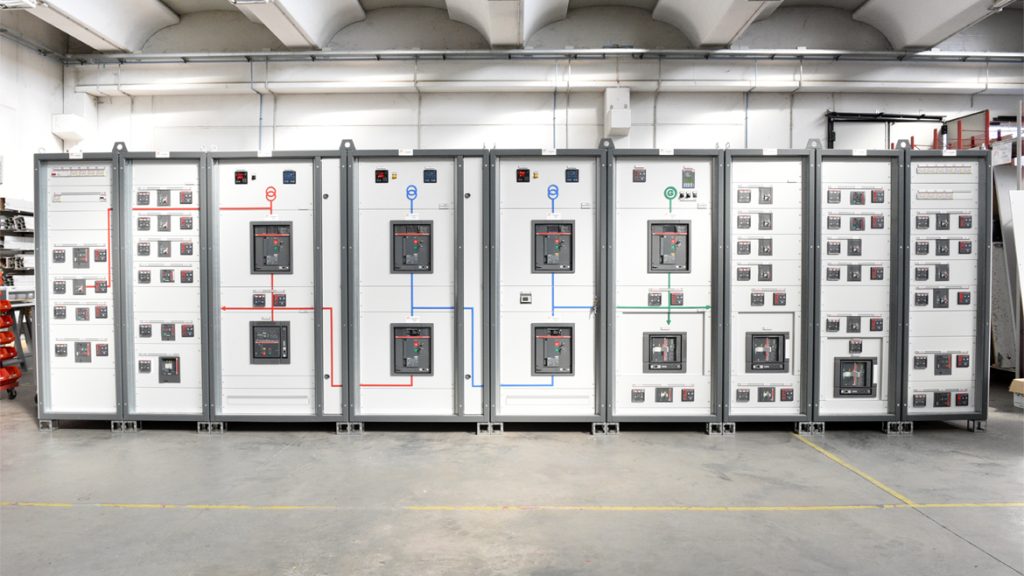

Main Switchboards (Power Control Centers)

  (Fixed/Plug In)

• • Totally Type tested design for 50 kA for 3 sec
  • Conforms up to Form-4 Type-7 design
  • Tailor made solutions, e.g., main bus bars at the bottom or top
  • Robust design
  • Designs with front as well as rear access
  • Inherent safety features like impossibility to withdraw
  • a live circuit breaker
  • , impossible to open the door in live condition, etc.
  • Panels are designed for fixed/draw out type ACBs
  • or fixed /Draw out/Plug-in type MCCBs as incomer and outgoing

depending upon the requirements of the customer.

• • Ample cabling space both for incoming and outgoing cables.
  • Designs suiting the various dimensions of substation rooms.

• Suitable for distribution of power up to
• 800A/415V/60 Hz
• Type tested design for 50 kA for 1 sec
• Available in a variety of sizes depending upon the requirement.
• Top and bottom cable entry is possible.
• Breaker can be supplied flush with the door on request.
• Separate access for Incomer breaker can be provided.
• No live part is exposed even after opening the door
• Main Bus bars and the outgoing copper links are insulated for extra safety.
